It is a vertical insulating glass production line for the manufacture of dual-sealed and triple sealed insulating glass units with automatic operations. Automatic washing drying and pressing. The double-beam system reduces the contact between the glass and the backrest wheel, and meets the high-quality requirements of seamless surface of the hollow glass. Can automatically detect the size of the glass, automatically adjust the optimal inflation time, the inflation rate is more than 85%, and the amount of gas is saved
Features
Automatically distinguish the coated glass and Low-E glass.

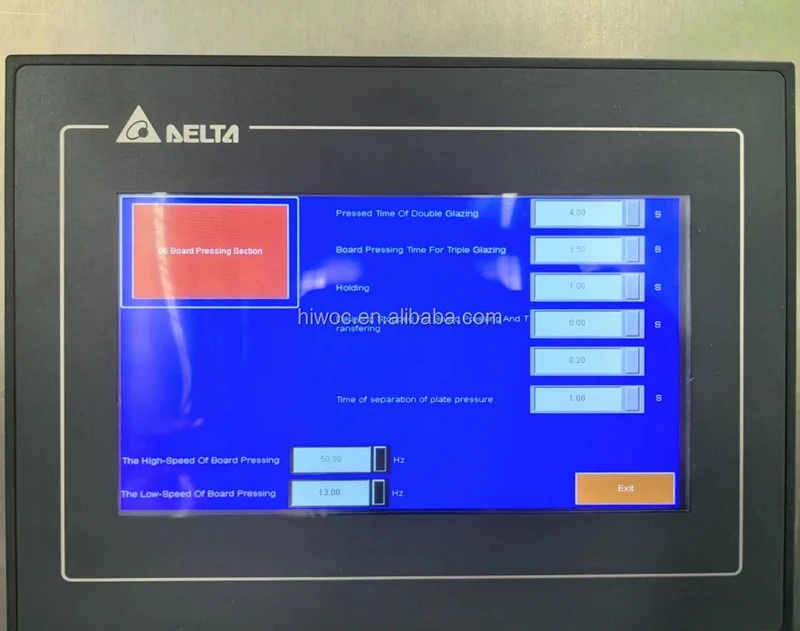

PLC control system with touch screen operation. - Can fill in argon gas
Production lines with outside panel press can produce standard double layer IG and three layers IG.
Porduction lines are available for both of inside and outside panel press, which can produce different sizes glasses.
Inert gasfilling in the plate(optional).
IG press rack, gear and chain synchronous device driven by hydraulic station.
Frequency control designed for glass transmission.
Panel press openable,easy for maintainace.
Output: 80o pieces double glass units, shift 8 hours(double layer IG, size 1m).
Advantage
Fully automatic
Fill in argon gas
Large volume working output
Application
Produce insulating glass unit.
Parameter
| Max Size | 2000*3000 mm |
| Min Size | 280*450 mm |
| Thickness of insulating glass unit (max) | 50 mm |
| Single glass thickness | 3–12 mm |
| Glass transmit speed | 40–45 m/min |
| Cleaning speed | 2–15 m/min |
| Compressed air flow | 0.8 m³/min |
| Air pressure | 0.6–0.8 MPa |
| Total power | 35 KW |
| Brushes | 3 pairs (for Low-E) |
| Electrical connection | 3P 380 V, 50 Hz (Can customize) |
| Voltage fluctuations | ±10% |
| Electronic control system | Delta PLC |
| Line size | 2296026003550 mm |
| Line direction | Left to right or right to left (optional) |
