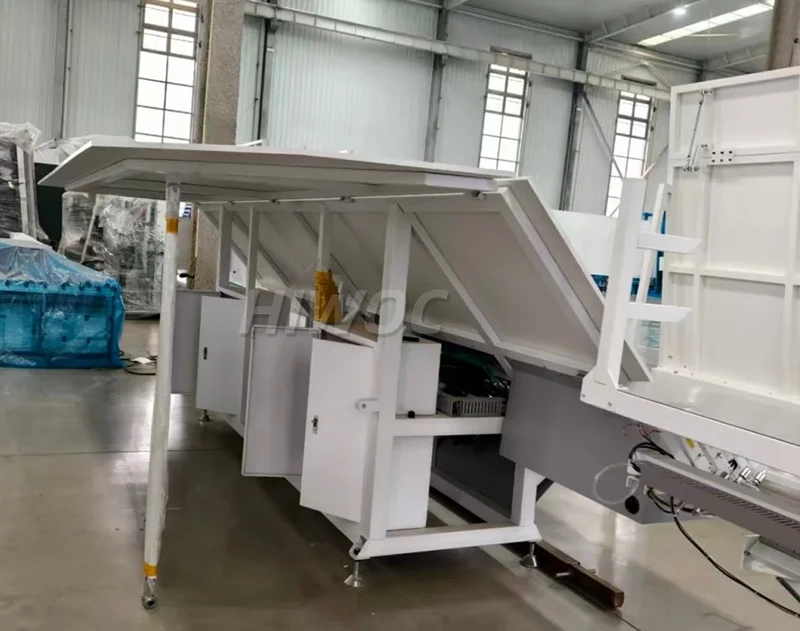

This machine is primarily used for bending aluminum spacers for insulated glass. It is a CNC model capable of bending shapes of any configuration. For example: It can make triangle, rectangle, positive five squareness, positive hexagon, roundness and so on.
Feature

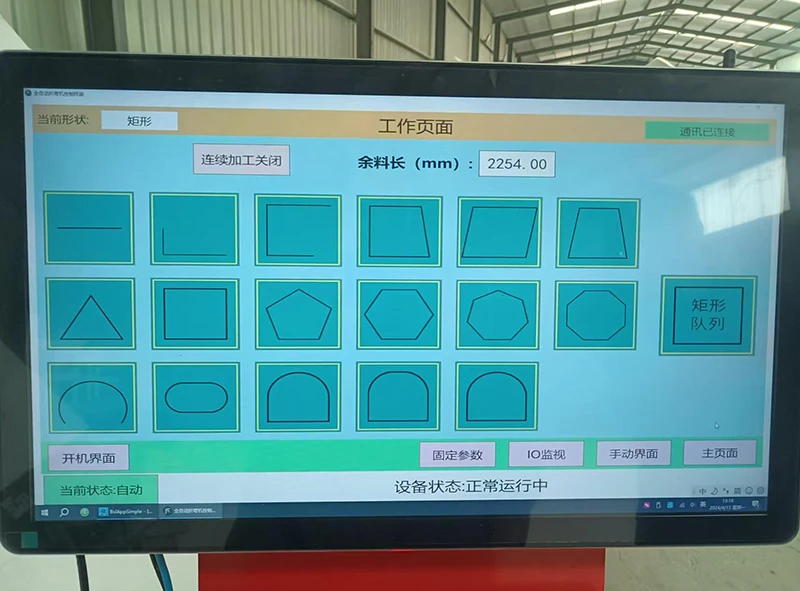

PLC control, touch human-machine interface, simple operation.
Feeding system adopts CNC servo motor, bending angle uses CNC control.
3.Auto-cutter, it doesn't need changing cutter (more than 6mm)
Bending and cutting automatically avoid the connection, the roundness, automatic cut after bending.
It can make triangle, rectangle, positive five squareness, positive hexagon, roundness and so on.
Advantage
CNC control
Fast work speed
Exactly bend result
Application

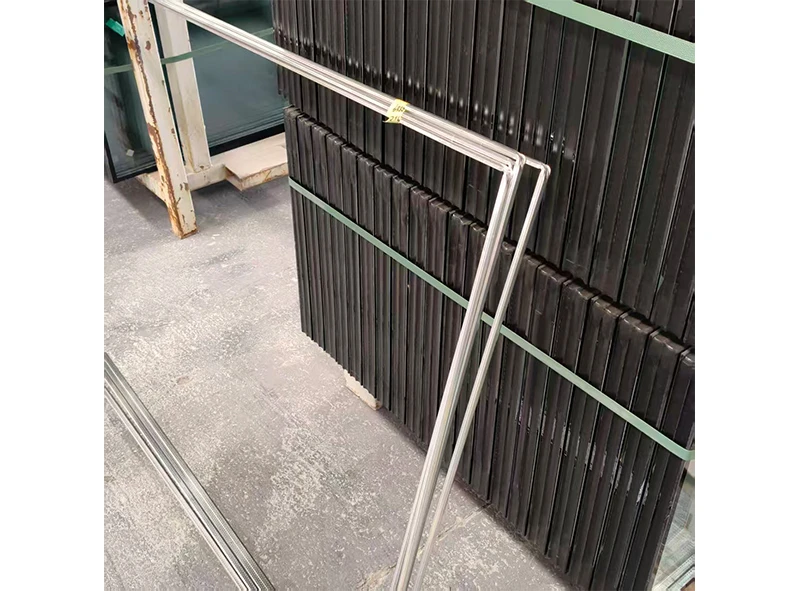

Bending aluminum spacer bar
Parameter
|
Input Voltage |
380V/50Hz/3 Phases |
|
Power |
4kw |
|
Air pressure |
0.6-0.8 Mpa |
|
Aluminum bar specification |
5.5mm-20mm |
|
Processing spacer frame size |
Min 250x250mm, Max2500x2500mm |
|
Bending angle |
Any |
|
Overall size |
10000*2200*2600mm |
|
Weight |
1000kg |
FAQ
What can you buy from us?
PVC window door machine, aluminum window door machine, insulating glass machine
Why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 10 years.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
Can your engineer come to my workshop do training and installation?
Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
