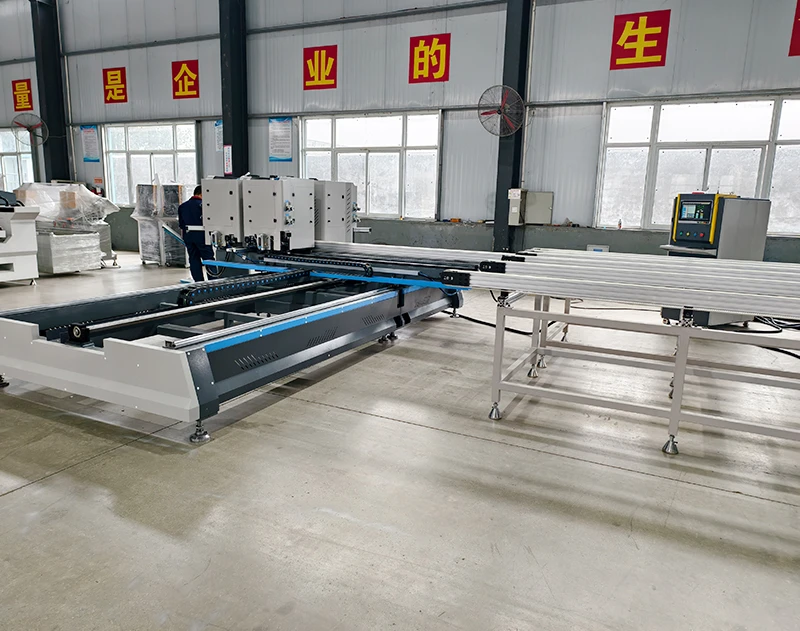

PVC efficient welding automatic cleaning production line

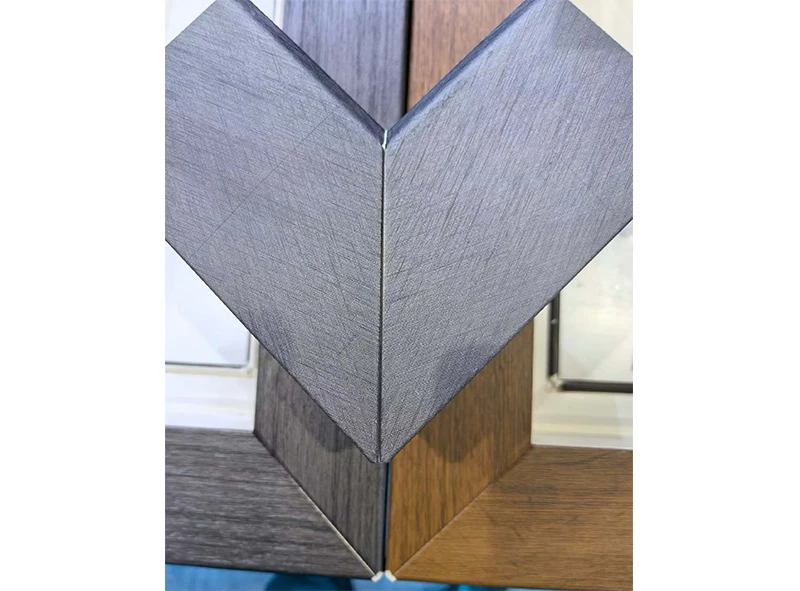

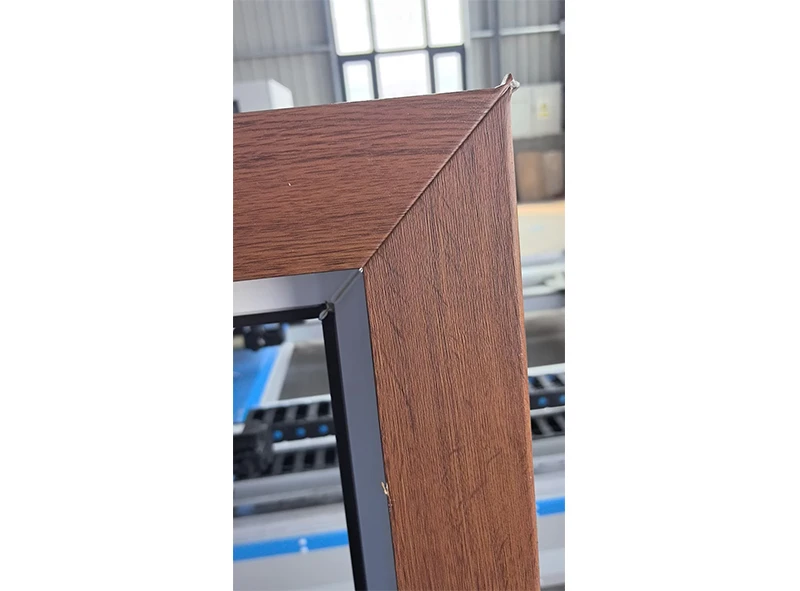

Professional production line for welding and cleaning the outer corners of colored PVC profiles, which can be welded into a rectangular window frame at one time, and the upper and lower welds are cleaned, and then the window is transmitted to the corner cleaning unit through the transmission worktable to complete the cleaning of the outside corner welds of the window.

Features

The whole machine extruder adopts Cr12MoV alloy high-precision tools, which are completed by precision machining after quenching, and the tools are standardized and tool interchangeability is supported.
The moving parts of this machine, all of which adopt high-precision precision linear square guide rails to ensure the stability and reliability of the equipment.
Is equipped with an industrial computer and a well-known brand CNC system, driving a large inertia servo motor, which automatically completes the welding, transmission and cleaning of the outer fillet weld of the window, which is easy to operate and has stable and reliable performance.
Frame is welded with thick-walled rectangular steel pipes, which have a strong load-bearing capacity and are not easy to deform. The bed is removable for easy transport.
Is equipped with an automatic blowing device, and the sheared weld can be blown off automatically.
Adopts domestic well-known brand servo CNC system, the four-corner welding unit will pass the window profile code and length and width size to the corner cleaning unit, automatically retrieve the processing program, and automatically rotate and clean according to the window size.
Corner cleaning unit can be used as a stand-alone machine, and the window frame can be manually rotated to clean the four welded corner joints.
Saw blade milling cutter adopts spindle motor, upper and lower weld cleaning adopts pull blade type, standard equipped with 9 sets of tools, which can realize the rapid cleaning of the upper/lower plane, façade, upper/lower rubber groove, upper/lower inner corner bevel and glass groove straight face of the window.
Is equipped with a USB port, which can realize the rapid copying of multiple programs, and is equipped with a handheld remote control, which can realize manual teach-in programming and automatically realize the production and processing program.
Can realize arc interpolation and linear interpolation, and can store the processing programs of thousands of profiles, which is an essential equipment for large door and window enterprises to carry out multi-variety and large-scale corner seam cleaning.
Tools are driven by CNC axis, and the upper and lower broaches work at the same time to ensure the beauty of weld cleaning and improve processing efficiency.
Professional-grade industrial appearance design, it realizes the perfect combination of practical equipment and beautiful appearance, and brings customers a high-end experience of visual senses.

Voltage	380V/50Hz
Power	welding：9.5kW cleaning：6.5kW
Air Pressure	0.6～0.8MPa
Welding Range	Min：460×620mm Max：2500×3000mm
Welding profile Size	H=30～120mm W=110mm
Cleaning Size	H=30～120mm W=110mm
Cleaning Range	Min：460×460mm Max：2500×3000mm
Size	13500×5250×1850mm
