Feature

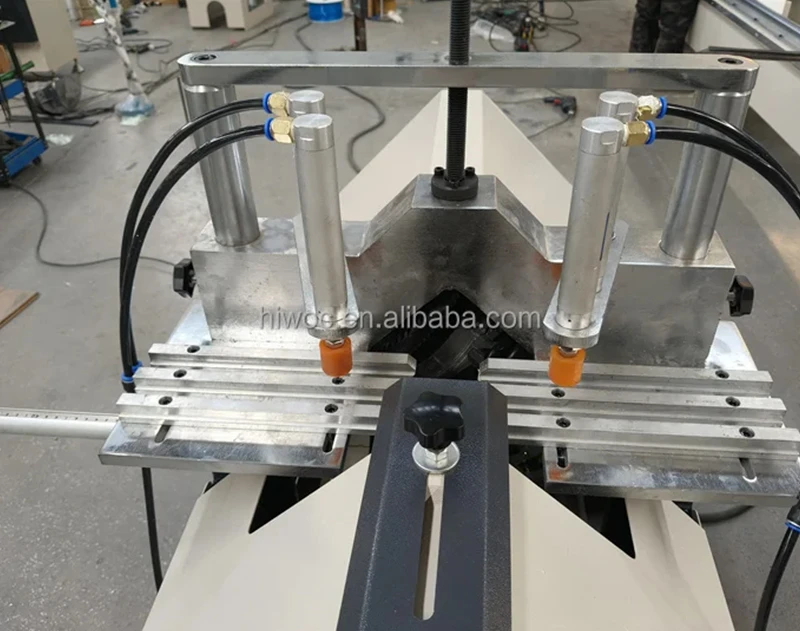

Used for 45 ° glass glazing bead cutting and the angle milling and cutting.
One time could cutting two pieces of glass glazing bead.
With measure rulers, It can processing the glazing bead according to the needed size in order to make sure the precision of the processing size and remove the fan frame assembly error.
4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.
Vertical clamping device and special designed cutting jig ensure stable positioning.
Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead according to need.
Advantage
Easy operation
Fast speed
Fine working result

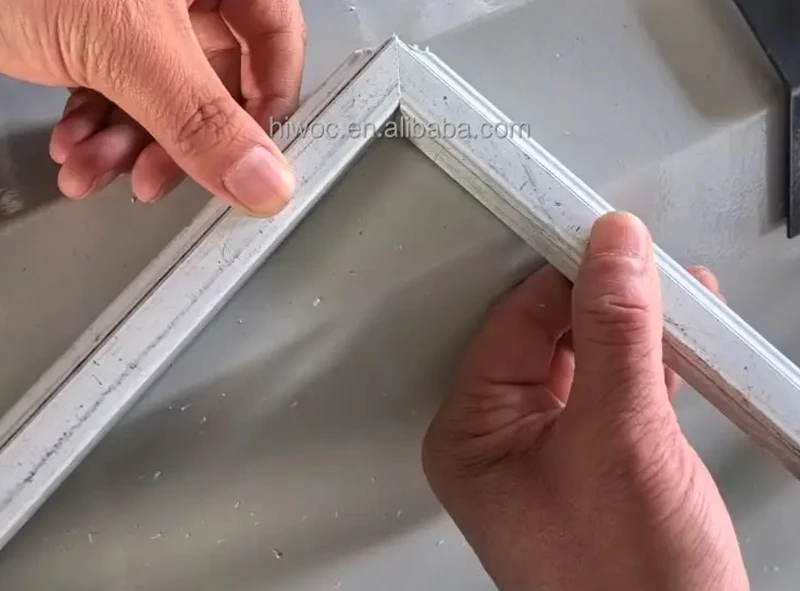

Application
Cutting of upvc/pvc profile bead profile
Parameter
|
Air Pressure |
0.4~0.7MPa |
|
Air consumption |
80L/min |
|
Input Voltage |
380V 50~60Hz or As Customer need |
|
Input Power |
2*0. 75Kw |
|
Cutting range |
320-1800mm |
|
Cutting Width |
120mm |
|
Cutting profile height |
29mm |
|
Overall size |
1900×700×1350 (mm) |
|
Weight |
300kg |
FAQ
What can you buy from us?
PVC window door machine, aluminum window door machine, insulating glass machine
Why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 10 years.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
Can your engineer come to my workshop do training and installation?
Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
