Copy-routing lock hole milling machine

This machine is designed for milling door handles in door manufacturing plants; it features hardware monitoring, simple operation, and produces excellent machining results

INQUIRE NOW NEXT PRODUCT

Feature Advantage Application Product Parameters FAQ Related Products

Feature

Used for copy-routing processing various holes, grooves and water slots on aluminum windows and doors. High-precision copy routing, easy operation, two hand operation. Changeable template for different copy routing.
By copying template and auxiliary position two copying method.
Using a foot switch control the pressing cylinder, safe and reliable.
It has features of compact structure and small volume.

Advantage

01

Easy operation
02

Low costs
03

Fine working result

Application

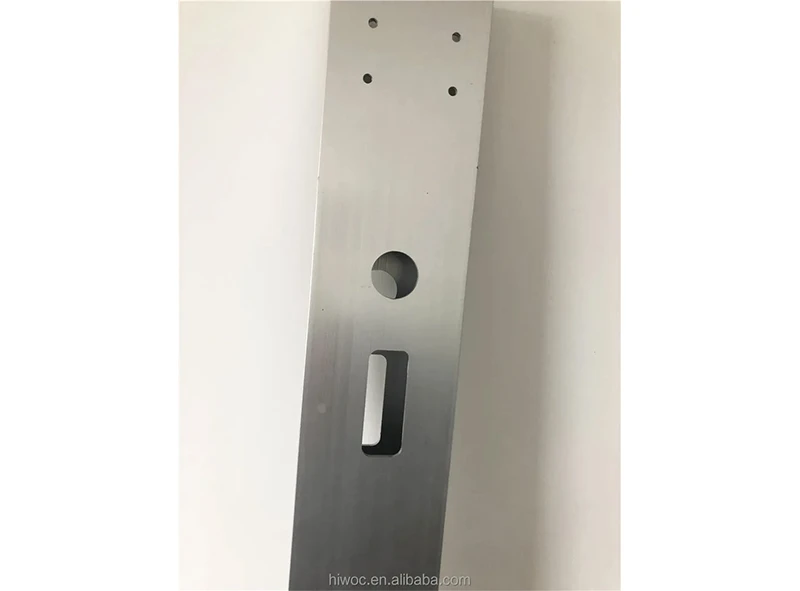

Drilling holes, milling grooves, processing round holes and special-shaped holes, plane engraving of aluminum alloy profiles

Product Parameters

Power supply	380V 60HZ or customer specification.
Input power	2.6KW
Motor rotary speed	2800r /min
Operation air pressure	0.6-0.8MPa
Milling cutter diameter	Φ5, Φ8
Diameter of the three-hole drilling head	Φ12
Distance of the three-hole drilling head	21.5mmx21.5mm
Copy-routing range	290*100mm
Overall dimension	100011301600
Weight	310kg

FAQ

What can you buy from us?

PVC window door machine, aluminum window door machine, insulating glass machine

Why should you buy from us not from other suppliers?

We have professional manufacturing, sales and after sales team for more than 10 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;

Can your engineer come to my workshop do training and installation?

Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
