This machine is specially designed for punching holes in steel liners of plastic steel profiles. It punches automatically and has high processing efficiency. This machine also has options for double-head, triple-head, and quadruple-head.
Features
Fix the reinforcement in pvc profile at one time, and no need to drill the screw hole firstly.
Strong torque design fit flexible.
Automatic screw filling system, and operated easily.
The space between the two screws can be adjusted freely.
Advantage
Automatic working
Fast speed
Save labor-force

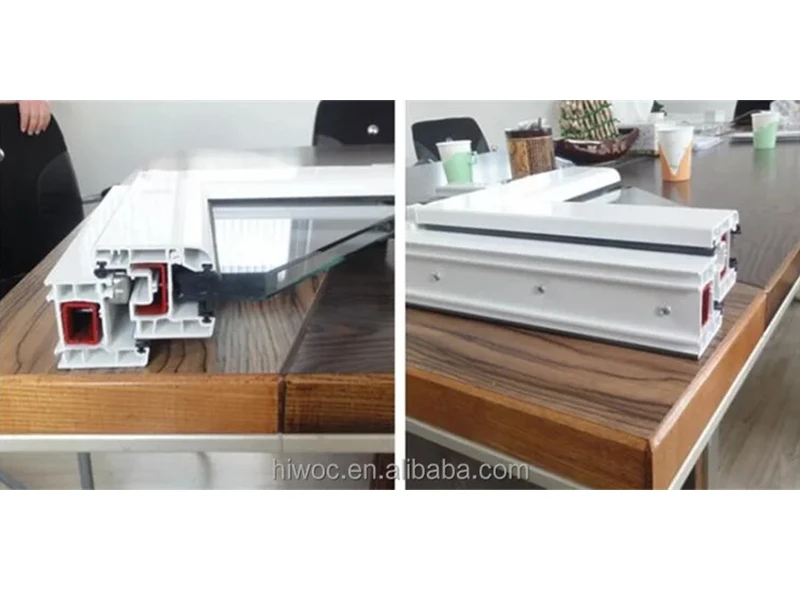

Application
Punching holes in steel liners of plastic steel profiles
Parameter
|
Air Pressure |
0.6~0.8MPa |
|
Input Voltage |
220V 50Hz or As Customer need |
|
Input Power |
150W |
|
Motor speed |
1000rpm |
|
Drilling height |
25-120mm |
|
Max Profile width |
120mm |
|
Screw Diameter |
3.0-5.0mm |
|
Screw length |
11-19mm |
|
Profile step deepth |
32mm |
|
Overall size |
900×750×1900mm |
|
Weight |
150kg |
FAQ
What can you buy from us?
PVC window door machine, aluminum window door machine, insulating glass machine
Why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 10 years.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
Can your engineer come to my workshop do training and installation?
Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
