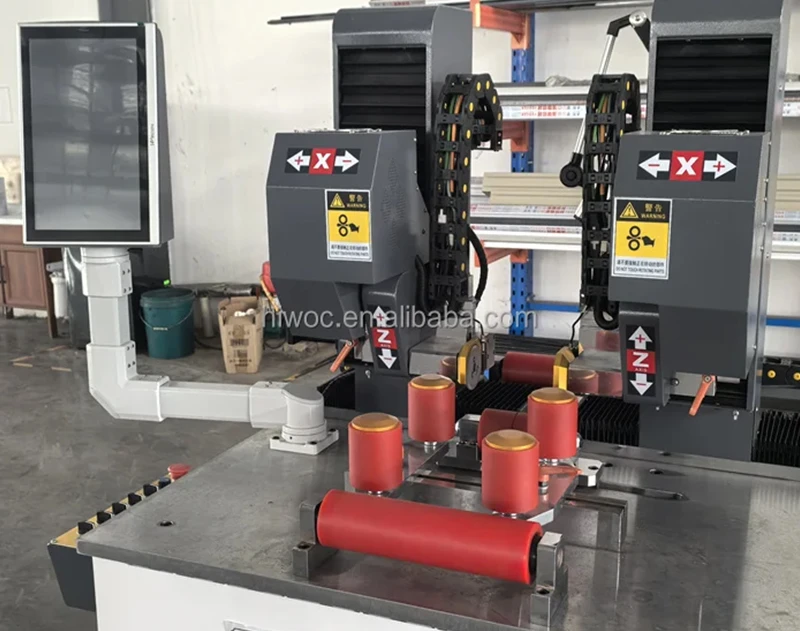

Thermal break profile 6 axis CNC knurling and strip-inserting machine

This machine is professional thread thermal insulation strips on the broken bridge aluminum profiles or roll teeth on the inner side of the PVC profile groove, increase the friction between the broken bridge aluminum profiles and thermal insulation strips, equipped with a special clamping pneumatic device, it can achieve "opening teeth, threading strips, and applying film at the same time".

INQUIRE NOW NEXT PRODUCT

Feature

Using Siemens motors, HIWIN ball screws, HIWIN linear guides (square rails), and Schneider Electric, the equipment operates more stably, efficiently, and easily.
The CNC can control the overall lifting and lowering or just separate , and the six axes can adjust to different heights and widths separately , which can be used for all profiles (such as special-shaped profiles, high and low platforms, misalignment, etc.).
It can automatically sense clamping, loosening, and tooth opening.
When replacing profiles, it can be reset with one click, without manual adjustment (such as : change the height when replacing insulation strips), making it faster and more stable. Realize automation.
With the laminated bracket and strip clamping device, it is possible to achieve "opening teeth, threading strips, and applying film at the same time”.
The two tooth opening heads are vertically adjusted by a microcomputer to achieve integration.
The lower support wheel can make the separate adjustment(upper and lower, right and left) for different shaped profiles.
The machine is equipped with a bar code scanner, which can print QR codes, scan codes, and enter programs. The operation is simple and fast

Advantage

01

CNC controlled, save labor-force
02

With highest quality machines parts
03

High speed

Application

Thread thermal insulation strips on the broken bridge aluminum profiles or roll teeth on the inner side of the PVC profile groove,

Product Parameters

Voltage	380V/50Hz
Input power	4.2Kw
Gear cutter diameter	90mm
Adjusting range of gear cutter	Width：230 mm
Adjusting range of gear cutter	Height：260 mm
Adjusting range of thermal insulation strip	0-80mm
External air source pressure	0.6-0.8Mpa
Speed	0-60M/min
Maximum processing profile section size	380x260mm width by height
Dimension	1400x1200x1600mm
Weight	700Kg
