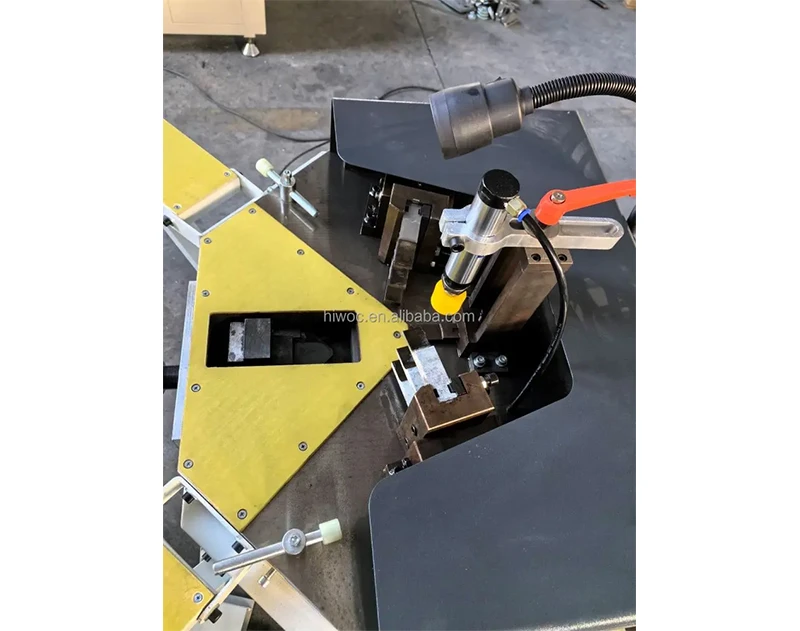

Hydraulic Corner Combing Machine

This machine is specifically designed for the corner crimping of aluminum doors and windows. It operates hydraulically, delivering high torque and exceptional processing efficiency. Operation is simple and straightforward.

INQUIRE NOW NEXT PRODUCT

Feature Advantage Application Specification FAQ Related Products

Feature

The frame is specially jointed by steel with high quality and then does special process.
Adopt new mechanical linkage device,realized complete synchro nous corner combining.
Synchro Feeding structure make the adjustment very easy.
Screw thread regulates the distance between up and down crimping blade ensures regulates blades easily.
It is collocate single cutte of many points crimping cutter ensure reliably crimping heat insulation aluminum windows and doors.

Advantage

01

Low costs
02

Easy to operate
03

Fast crimping speed

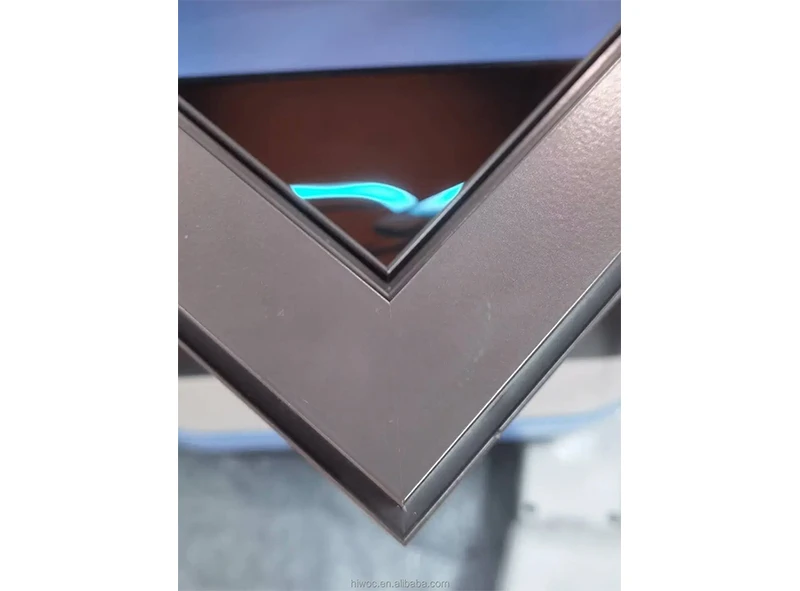

Application

Welding pvc window door profile

Specification

Power supply	380V 50Hz or Customers specification
Motor power	1.5KW
Rated pressure	16 Mpa
Motor rotational speed	1400r/min
Capacity of oil box	20L
Profile processing height	Max 120mm
Profile processing width	90mm
Total combining pressure	0.5-0.8Mpa
Air consumption	3L/min
General pressure of corner combining	50KN
Corner combining casing movement journey	85mm
The adjustable range of main location block	54mm
Overall dimension	100012001200mm
Weight	385kg

FAQ

What can you buy from us?

PVC window door machine, aluminum window door machine, insulating glass machine

Why should you buy from us not from other suppliers?

We have professional manufacturing, sales and after sales team for more than 10 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;

Can your engineer come to my workshop do training and installation?

Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
