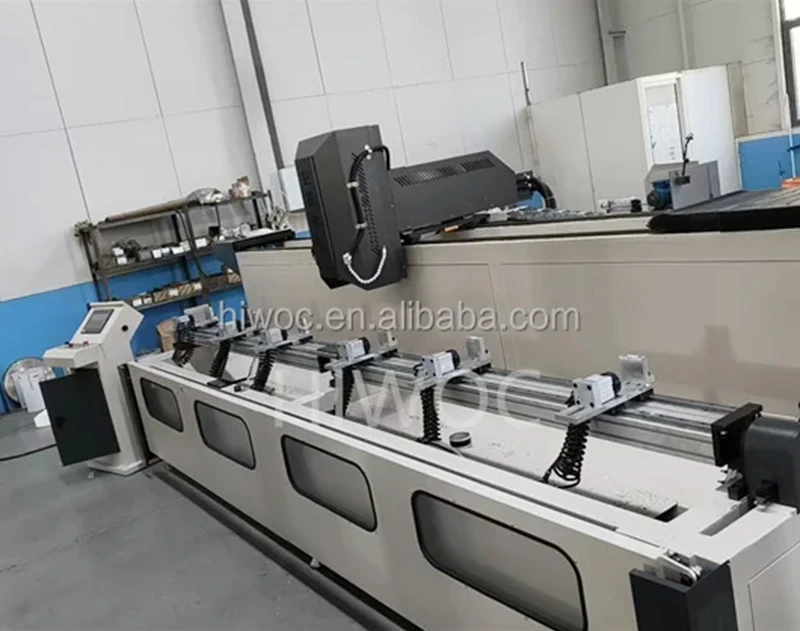

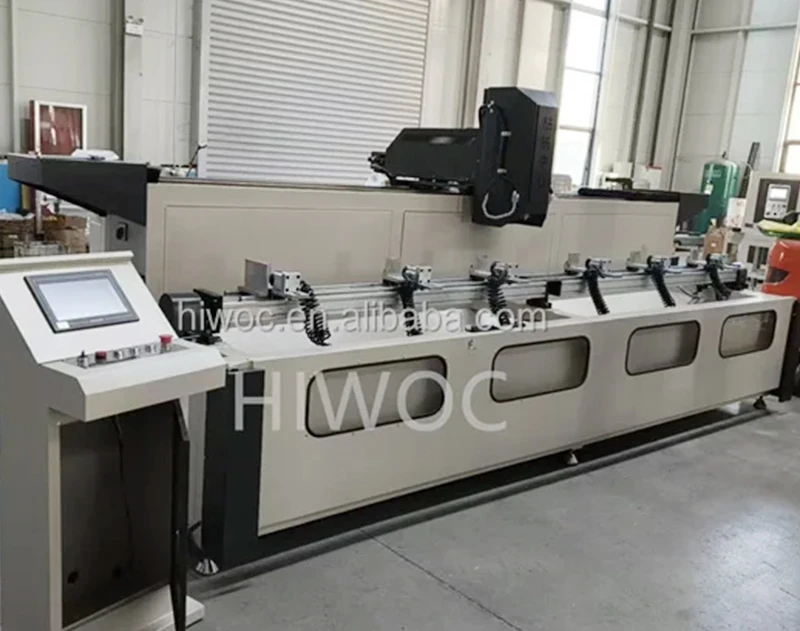

The machine is advanced CNC solution for drilling holes, milling grooves, processing round holes and special-shaped holes, plane engraving of aluminum alloy profiles, in highest efficiency and accuracy. With 6 pcs ATC automatic tool changers.
Features
The machine is used for drilling holes, milling grooves, processing round holes and special-shaped holes, plane engraving of aluminum alloy profiles.
Adopted CNC Control system.
Adopted the electric spindle, high precision, high safety and reliability.
X axle adopts high precision helical gear and rack, Y and Z axis adopt high-precision ball screw transmission, steady transmission and high precision.
By using programming software to transform and process G code automatically, easy operation, high efficiency and low labor intensity.
Workbench can turn 180°,-90°0°+90°, it can realize material three-sides section processing by clamping one time, it can process deep and special-shaped holes through workbench turning, high efficiency and precision.
With 6 pcs tool changer, can change knife automatically
Advantage
With ATC automatic tool changer, can exchange tools automatic in 6 pcs.
High processing accuracy
Save labor force
Application
Drilling holes, milling grooves, processing round holes and special-shaped holes, plane engraving of aluminum alloy profiles
Product Parameter
|
Power Supply |
3 phase, 380v, 50hz |
Spindle power |
9KW |
|
Spindle rotate |
0-18000RPM |
Automatic tool changer |
6 PCS |
|
Processing range |
400*400 mm |
X axis travel speed |
90m/min |
|
X axis travel range |
4000mm |
Y axis travel speed |
65m/min |
|
Y axis travel range |
350mm |
Z axis travel speed |
10m/min |
|
Z axis travel range |
300mm |
X axis positioning accuracy |
+-0.02mm |
|
Y and Z axis positioning accuracy |
+-0.02mm |
Air consumption |
60L/min |
|
Clamping system |
Auto(ER25.It usually can hold 2~16mm cutter diameter) |
Tool changing system: Manual/Auto |
Auto(usually 6knives); can be customized |
|
Tool per magazine |
Automatic |
Type of cooling system |
Air cooling |
|
Crumb collecting tool:Yes/No |
Yes |
Type of Lubrication System |
Auto Lubrication |
|
Oversize |
5100×1700×1900mm |
Weight |
2200kgs |
FAQ
What can you buy from us?
PVC window door machine, aluminum window door machine, insulating glass machine
Why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 10 years.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
Can your engineer come to my workshop do training and installation?
Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
