It is suitable for the manufacturing of large and medium-sized molds, ships, and aluminum alloy structural parts, as well as the processing of aluminum alloy structural parts for rail transit, automobile anti-collision beams, photovoltaics, aluminum doors and windows curtain walls, etc. It is an ideal equipment for processing parts with high precision requirements, complex shapes, mold industry, and aerospace industry.
Feature
It is suitable for the manufacturing of large and medium-sized molds, ships, and aluminum alloy structural parts, as well as the processing of aluminum alloy structural parts for rail transit, automobile anti-collision beams, photovoltaics, aluminum doors and windows curtain walls, etc. It is an ideal equipment for processing parts with high precision requirements, complex shapes, mold industry, and aerospace industry.
The machine body adopts a heavy-duty frame welded structure. The CNC system uses a Taiwan Syntec four-axis CNC system to control the machine tool's motion parts. Imported servo motors and servo drives are used, which result in fast positioning speed, smooth operation, and fault self-diagnosis function.

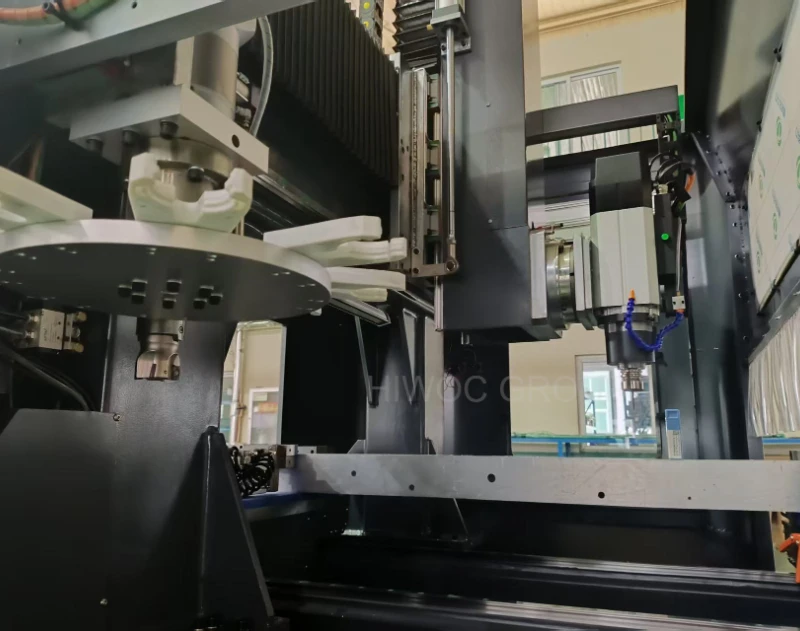

Thanks to its advanced CNC system, this machine can simultaneously meet various processing needs such as drilling, milling, chamfering, and planar engraving. The four-axis head uses an original Italian OLIspeed air-cooled tool-changing spindle, enabling machining at any angle from -90° to 90°, and features automatic tool changing and automatic tool setting functions.
The CNC system configuration file storage unit can store tens of thousands of different machining program files, which can be freely accessed by the operator during on-site production, providing convenience and speed. The CNC system itself has functions such as fault detection, breakpoint recovery, and power failure recovery. The control system adopts a modular structure, facilitating maintenance and repair on the production site.
Product Advantages
CNC controlled, fully automatic
4 axis rotate spindle
High working speed and accuracy

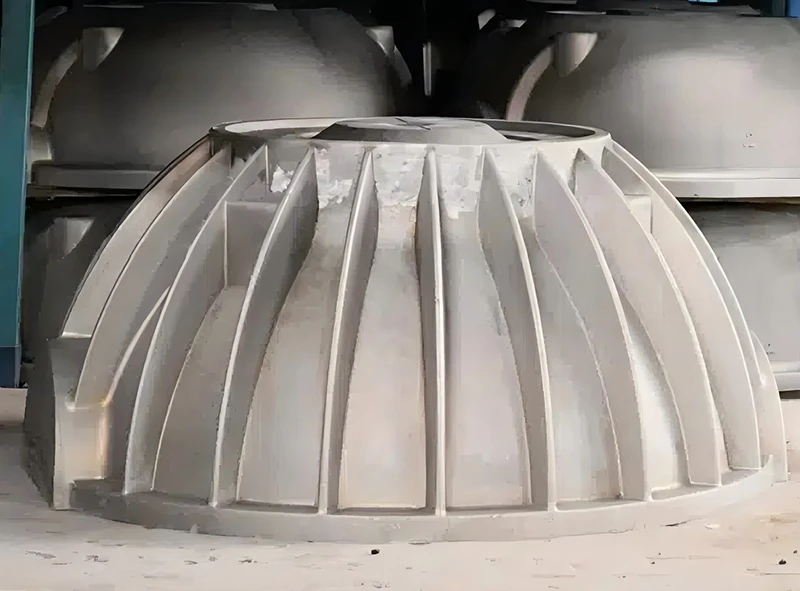

Application Scenarios
Manufacturing of large and medium-sized molds, ships, and aluminum alloy structural parts, as well as the processing of aluminum alloy structural parts for rail transit, automobile anti-collision beams, photovoltaics, aluminum doors and windows curtain walls, etc.
Product Parameters
|
Power Supply |
3 phase, 380v, 50hz |
Spindle power |
9KW |
|
Total power |
16KW |

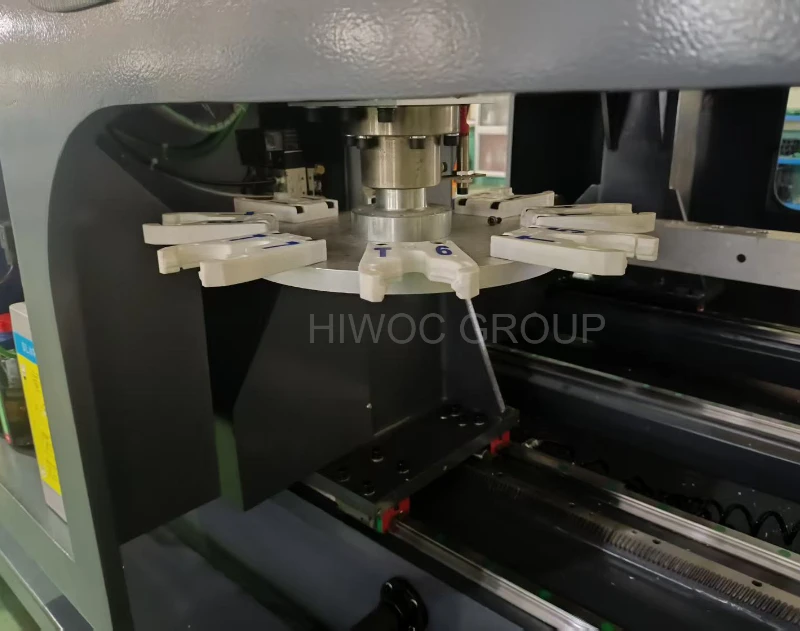

Automatic tool changer |
8+8 PCS |
|
|
|
X axis travel speed |
50m/min |
|
X axis travel range |
6000mm |
Y axis travel speed |
25m/min |
|
Y axis travel range |
800mm |
Z axis travel speed |
10m/min |
|
Z axis travel range |
400mm |
X/Y/Z feed speed |
XY（0-10000）mm/min, Z（0-5000）mm/min |
|
Spindle speed |
24000 RPM |
Motor power |
0.55KW |
|
Spindle taper hole |
ISO30 ER32 |
X/Y/Z driven motor |
2.9kw/1.8kw/1.8kw |
|
Lubrication and coolant system |
Auto-lubrication |
Coolant system |
Micro-lubrication cooling |
|
Working air pressure |
0.5MPa – 0.7MPa |
Machine dimension |
9000mm×2230mm×3060mm |
FAQ
What can you buy from us?
PVC window door machine, aluminum window door machine, insulating glass machine
Why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 10 years.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
Can your engineer come to my workshop do training and installation?
Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
