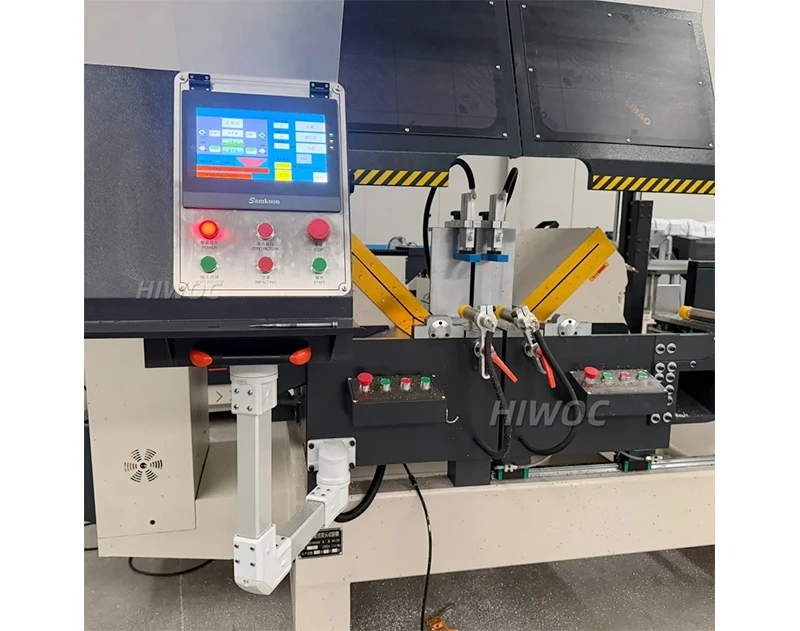

Double-head Precision CNC Cutting Saw

This machine can cut both pvc and Aluminum profile. Equipped with a CNC system, it can automatically cut and automatically adjust angles. High precision, high speed, and high processing efficiency.

INQUIRE NOW NEXT PRODUCT

Feature Advantage Application Parameter FAQ Related Products

Feature

Imported carbides blade is of accurate processing and high endurance.
Saw blade rotates smoothly due to the high accurate spindle
Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.
The feeding system adopts the imported linear guide pair, with high accuracy and stability
Two saw heads are adjustable and cut the profiles in -45 ° 90 °
Auto open and close shield marked the operation safety.
Right head feeding adopts high lead ball screw with high accurate driving, locating and smooth working.
This machine uses the digital display device.
Vertical and horizontal clamping cylinder.
Spraying cooling system.
Advanced CNC system & figure touch screen

Advantage

01

CNC controlled
02

Accurate cutting
03

Fast cutting speed

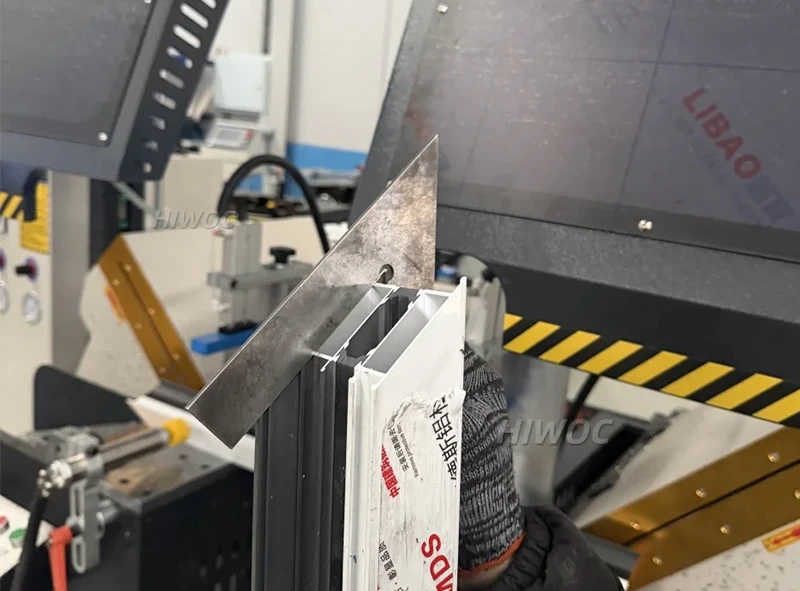

Application

Cutting of aluminum and upvc/pvc profile, in 45 and 90 degree

Parameter

Air Pressure	0.5~0.8MPa
Input Voltage	380V 50Hz or As Custmer need
Input Power	3x2Kw
Air consumption	80L/min
Motor rotary	2800r/min
Cutting width*height	135X250mm
Cutting length	400-4200mm
Saw blade specification	Ø500×Ø30
Cutting angle	90° 45°
Overall size	593016501950mm
Weight	1950kg

FAQ

What can you buy from us?

PVC window door machine, aluminum window door machine, insulating glass machine

Why should you buy from us not from other suppliers?

We have professional manufacturing, sales and after sales team for more than 10 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;

Can your engineer come to my workshop do training and installation?

Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
