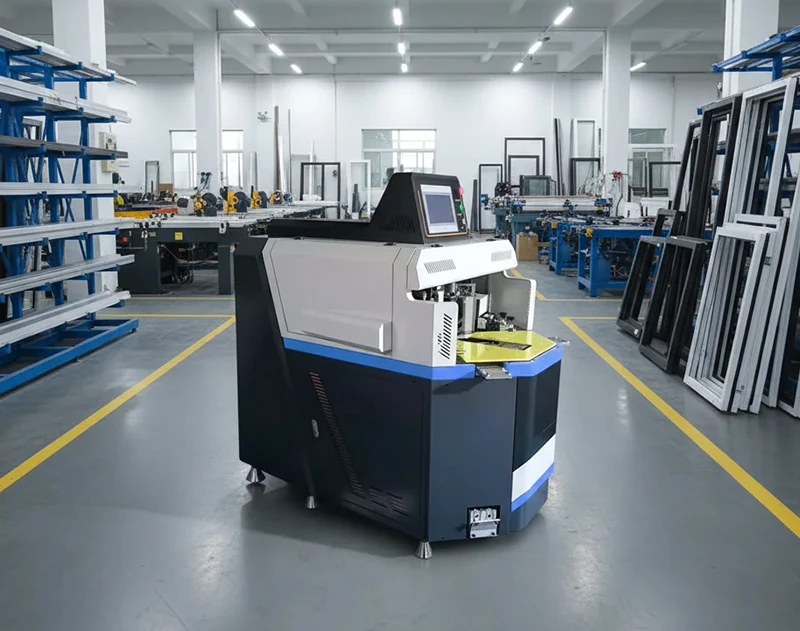

7 Axis CNC Heavy Corner Crimping Machine

7 Axis CNC Heavy Corner Crimping Machine

This type of machine is a pure CNC corner crimping machine with independent property rights and patent products. It not only realizes the fast and accurate conversion of various adjustment links during the conversion of various profiles, but also automatically stores the adjusted corner data into the database. The next time you use it, you can save 100 sets of data without any further adjustment. The whole mechanical structure of this machine has changed the structure mode of the existing models all over the world. The main power does not need oil or gas, and there is no need to worry about air leakage, oil leakage and aging of sealing ring. It not only ensures the complete synchronization of feeding, but also ensures long-term and stable work without wear and deformation (the theoretical data can be guaranteed to be unchanged for 20 years); this new type of CNC corner crimping machine is of great value It can be said that it is a subversive change to the same type of model, creating a new era in the history of corner crimping machine.

INQUIRE NOW NEXT PRODUCT

Equipemnt Features

When replacing the profile, each blade position is automatically in place and can work without adjustment.
The uninterrupted operation of the main feed structure over the years ensures no wear or deformation, without the need for any adjustments.
It can store the angular data of each type of profile, which can be called up when in use. Different models of profiles can be replaced and processed within 20 seconds.
Positioning and feed rate can be adjusted arbitrarily, resulting in high processing efficiency.
All mechanical feed data and parameters are adjusted and controlled by touch screen, and the position and depth of the group angle do not require mechanical adjustment.

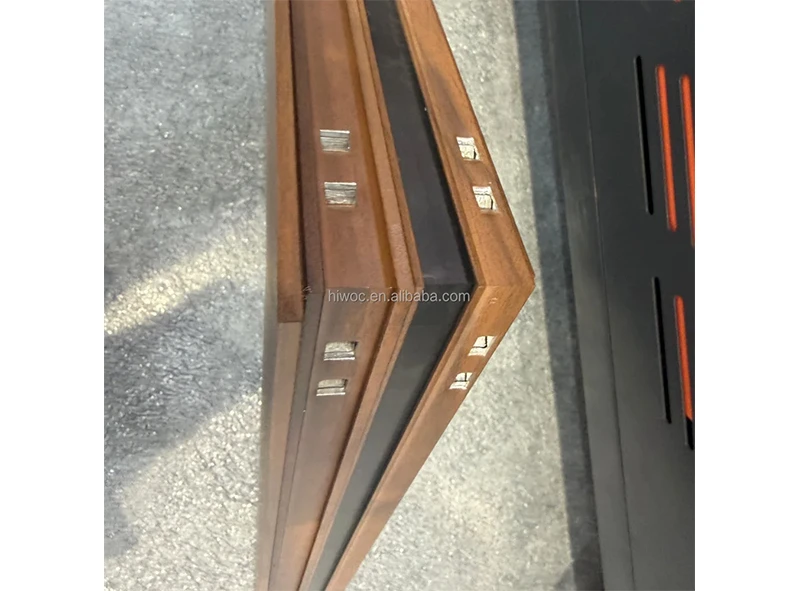

The range of corner assembly is large, and the height of the corner assembly can reach 180mm. It can be used to make large-sized and thick wall doors and windows.
There are three CNC corner setting modes that can be selected according to the proficiency of the workers.
This model can be quickly mastered without the need for professional workers and is not prone to errors.
Secondary positioning pneumatic clamping, no need for manual locking.
