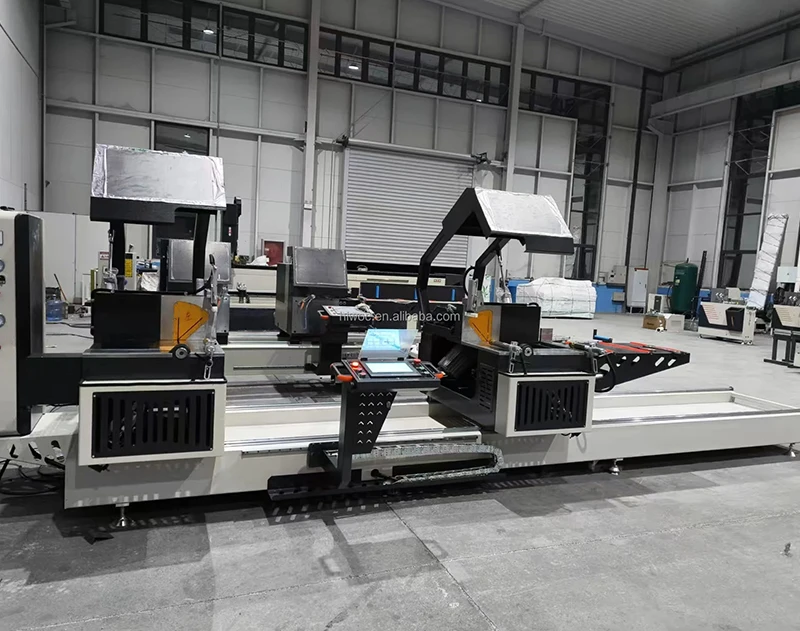

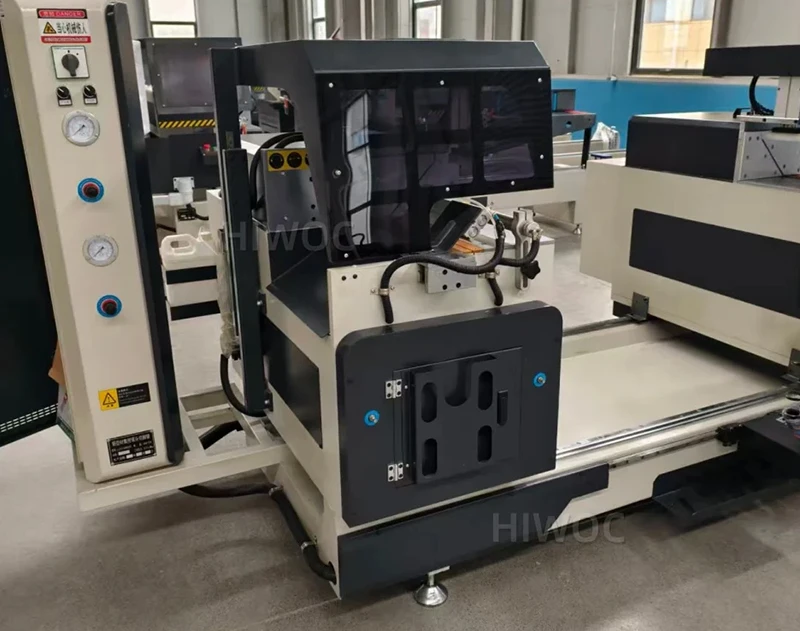

550 CNC Double-Head Precision Cutting Saw for large profile cutting

This cutting saw is specifically designed for cutting wide aluminum profiles. The maximum cutting width can reach 400MM. The machine has a numerical control system, providing high cutting precision.

INQUIRE NOW NEXT PRODUCT

Features Advantage Application Product Parameters FAQ Related Products

Features

Imported carbides blade is of accurate processing and high endurance.
Saw blade rotates smoothly due to the high accurate spindle
Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.
The feeding system adopts the imported linear guide pair, with high accuracy and stability
Two saw heads are adjustable and cut the profiles in -45 ° 90 °
Auto open and close shield marked the operation safety.
Right head feeding adopts high lead ball screw with high accurate driving, locating and smooth working

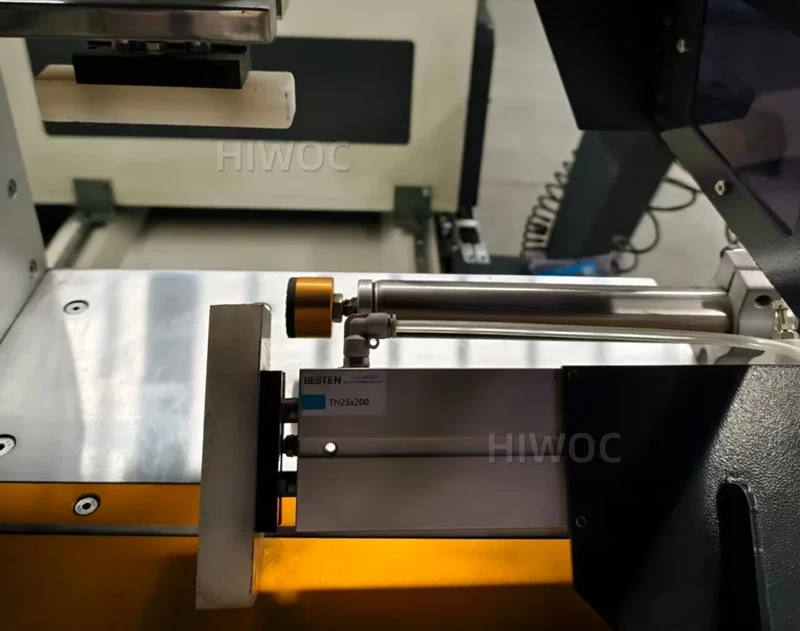

Vertical and horizontal clamping cylinder.
Spraying cooling system.
With CNC system & figure touch screen

Advantage

01

CNC control
02

Heavy duty for large width profile cutting
03

High precision, high speed

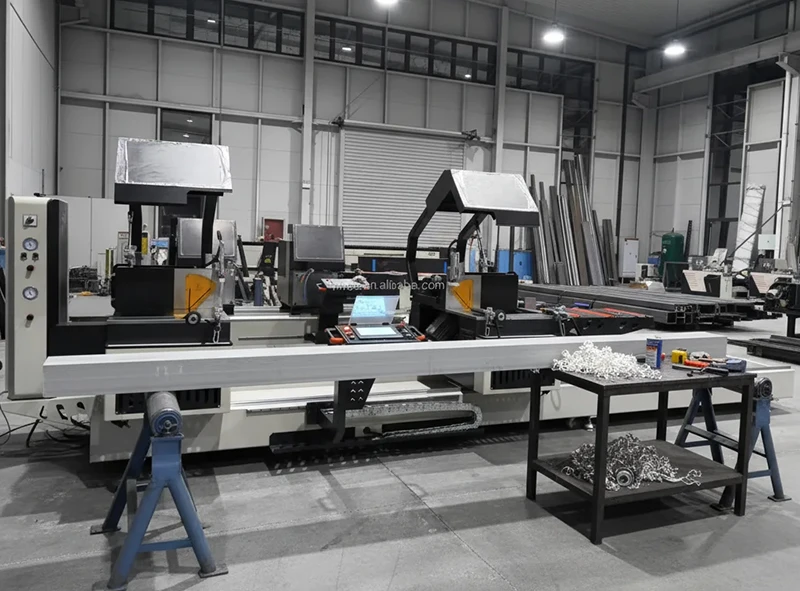

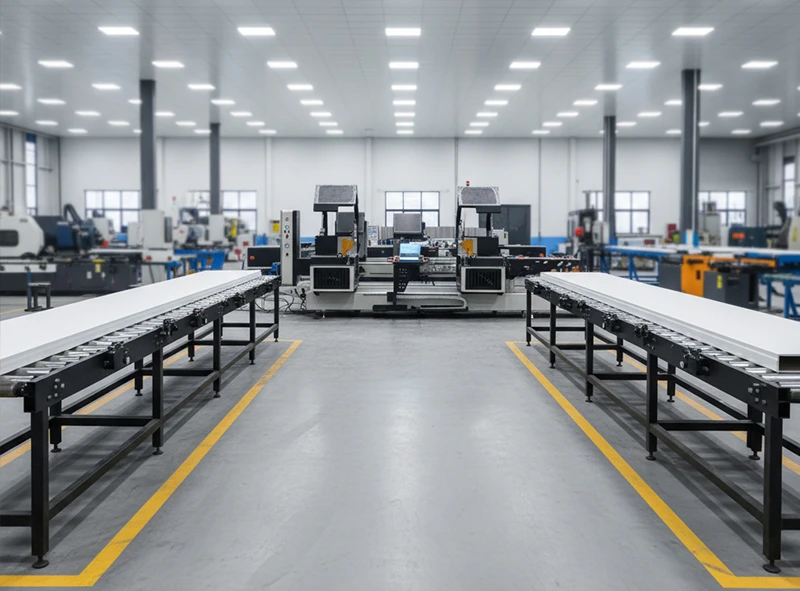

Application

Cutting of super large size aluminum and upvc/pvc profile, in 45 and 90 degree

Product Parameters

Power supply	380v50HZ
Input power	9kw
Air pressure	0.5-0.8Mpa
Cutting way	Horizontal saw blade come out
Saw blade diameter	550X3.0X4.4
Cutting angle	Inward 45°90°
Cutting length	45degree450-4700cm 9 degree 630-4700cm
Cutting height	45degre125cm 90degree180cm
Cutting width	400cm
Machine dimension	6450x1600x1600cm

FAQ

What can you buy from us?

PVC window door machine, aluminum window door machine, insulating glass machine

Why should you buy from us not from other suppliers?

We have professional manufacturing, sales and after sales team for more than 10 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF；

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;

Can your engineer come to my workshop do training and installation?

Yes, our engineer can go to your site, do training and installation. If you offer the round-trip tickets, hotel, and food.
